Through a process of research and design, we developed a series of modular steel bridges to quickly meet logistics and road connectivity needs, in accordance with the strictest parameters of the AASHTO LRFD standard, Bridge Design Specifications, 8th Edition, and the Colombian Bridge Design Standard (CCP14).

Our Sirius modular bridges, developed with a versatile modular design and cutting-edge technology, are strategic partners in the implementation of logistics operations in mining and hydrocarbon exploration areas, road infrastructure repair projects, and emergency response efforts, representing development in motion for communities and businesses.

BENEFITS

  • Our various modular solutions are perfectly tailored to customer requirements.
  • Parameters such as the span between supports and the effective rail width are easily adjustable for each specific case.
  • We provide transportation and installation services throughout the entire country.
  • Thanks to their modular components and bolted connections, they can be quickly assembled and put into service under any geographical conditions.
  • Manufacturing processes adhere to the highest quality standards.
  • Constructed from high-quality, certifiable imported steel.
  • Comprising prefabricated and pre-assembled components, combined with the experience and skill of our team, they guarantee a product with short manufacturing and assembly times.
  • Logistical operations and communication between communities are made possible promptly and with complete safety.
    • Download Flyer

    SIRIUS STEEL MODULAR BRIDGES

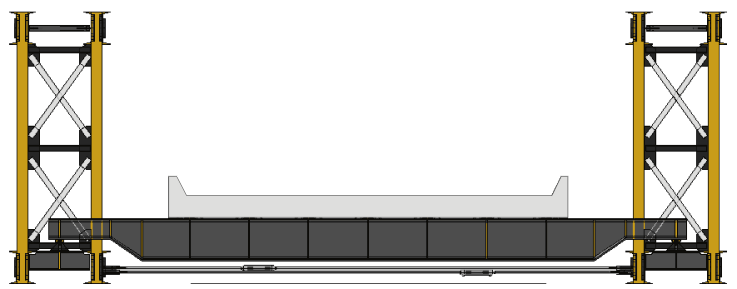

    A lower-deck bridge with Warren trusses and a simply supported deck structure. Modules of 6 ml with a lane width of 4.50 m in a single-span configuration up to 36 m and a double-span configuration up to 54 m (CCP14).

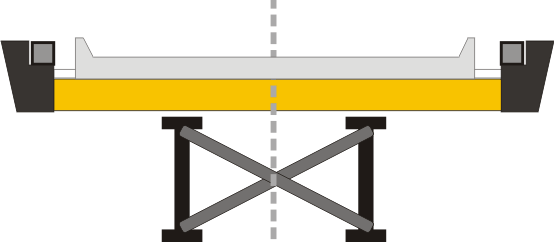

    Top-deck bridge with two longitudinal “I”-beam girders and a truss system composed of “I” and “C” beams, with a deck made of pressed galvanized steel grating or steel deck. Lane width up to 4.5 meters. Pre-assembled modules ideal for spans up to 18 meters (CCP14).

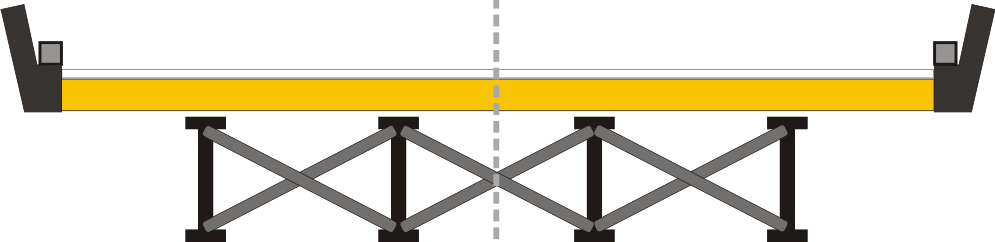

    Top-deck bridge with 4 longitudinal “I”-beam girders and a truss system of “I” and “C” beams, with a deck made of pressed galvanized steel grating or steel deck. Lane width up to 6.5 meters. Pre-assembled modules ideal for spans up to 24 meters (CCP14).

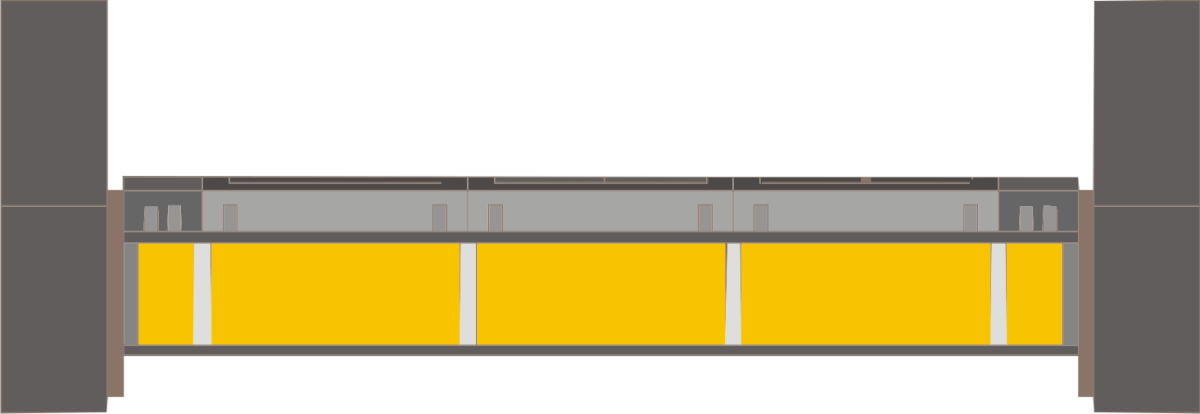

    Bottom-deck bridge with quick-installation longitudinal beams and a simply supported modular deck structure.
    Modules ranging from 15 ml with a lane width of 3.60 mts in a single-lane configuration up to 63 ml and 4.6 in width.
    Vehicular and pedestrian bridges made of steel and reinforced concrete, designed and manufactured to meet specific customer requirements, including spans, lane widths, and support and foundation solutions.
    All of our bridges are designed and manufactured in accordance with the applicable current CCP14 and AASHTO LRFD standards, using certified materials and high-quality processes to ensure compliance with standard loads (52 metric tons) and 2 million cycles. ​ For higher loads, we perform structural checks and modeling, taking into account the required forces, the type of vehicle, and the number of axles.
